KC HiLiTES FLEX ERA 1 (2-Light) Master Kit - 265

This darkness slayer is the perfect companion for cruising trails and setting up camp with your buddies. Powerful, bright, and compact, just as the most versatile light in the FLEX ERA Family ought to be.

We've amped up the versatility of the KC FLEX ERA 1 by including every beam pattern lens you'd want to be able to mount this light in any nook and cranny you can find. From the front, tucked just behind the changeable colored bezels, sits the clocked lens that allows you quickly change between spot, spread, and flood beam patterns. A patented FLEX ERA 1 housing (Patent No. D967,475) with intricate and flowing heat sink fins and compact overall size makes it a party from the front or the back. The FE1 is built to be mounted anywhere you need it, throwing light out forward, sideways, or backward.

DO EVERYTHING

Versatility meets Performance - With 2430 lumens of power in the high power mode in a compact package, the FE1 is perfect for all short-range lighting applications from bumper and ditch lights, to dust lights and reverse lights. Combine this with the Amber LED backlight for style, and you've got the best of all worlds.

HAVE EVERYTHING

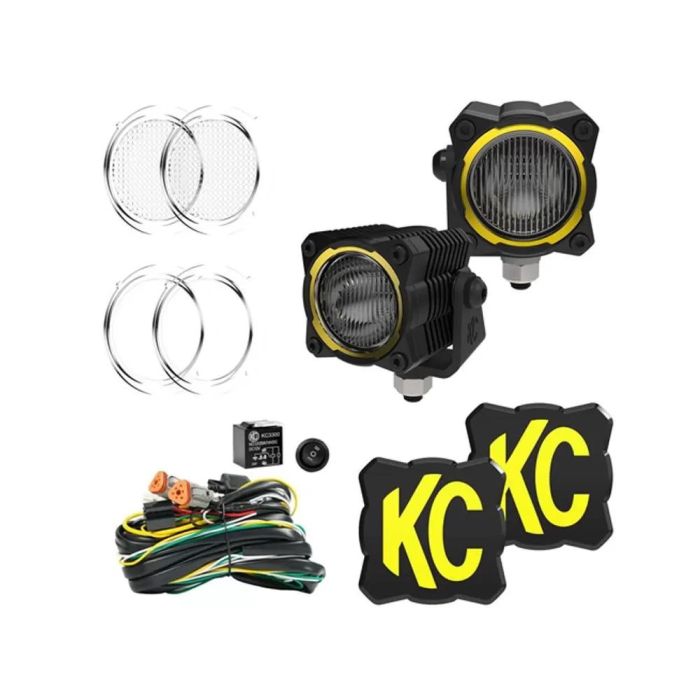

Master Kit - The KC FLEX ERA 1 Master Kit bundles two lights + all three beam pattern lenses + spare o-rings + black and yellow KC logo covers + a complete wiring kit for everything you need to spend less time in the garage and more time out on the trails.

SEE EVERYTHING

Asymmetric bracket design - For all of the small and tight nooks and crannies, the FE1 mounting bracket was designed asymmetrically to make sure you can mount the light practically everywhere. Features adjustable mounting depth, width, height, and orientation all within the included brackets.

MATCH EVERYTHING

Flex your style - Keeping with our tried and true FLEX LED tradition, you can change and stylize the colored accent bezel to match your rig. The FE1 bezels come standard in gold, but you can pick up the bezels in red, blue, or black to suit your needs.

DEFY EVERYTHING

IP68 Rated - More time in the dirt means additional wear and tear. We?ve made sure the FE1s can withstand any dust, dirt, and water that you throw at them and keep on asking for more.

Features:

• Master Kit includes all Beam Pattern Lenses:
  • Pre-assembled in Spread Beam
  • Flood Beam Lenses
  • Spot Beam Lenses
• Two Power Modes for Style and Performance:
  • Amber LED Backlight
  • Full Power (off-road use only)
• Mountable right side up, upside-down, or sideways with the asymmetric bracket design
• Customizable Machined Bezel Colors (sold separately)
• Thermal LED Protection
• IP68 Rated

• Light Temp: 5000K
• Candela: 4510 cd (flood) / 16200 cd (spread) / 31000 cd (spot)
• Lumens: 2430 lm
• Lux: 45.1 lx (flood) / 162 lx (spread) / 310 lx (spot)
• Amp Draw: 0.44 a / 1.94 a
• Voltage: 9V-36V
• Total Wattage: 10W / 46W
• Wattage Per Light: 5W / 23W
• Beam Pattern: Spread
• Beam Distance: 67.2 m flood / 127.3 m spread / 176.1 m spot
• IP Rating: IP68
• LED Color: White | Amber
• Lens Color: Clear
• Product Ships in Multiple Boxes: No
• Product Dimensions: W - 2.6" x H - 2.72" x D - 2.9"
• Shipping Dimensions - Box 1: 6.25x7.25x6.5
• Shipping Weight (Box 1): 4
• UPC: 084709002657
• pim_htcb (SDC/PIES): 8512.20.2040
• SAE/ECE Compliant: No
• DOT Compliant: No
• Prop 65: No

• (1) FLEX ERA 1 Light in Spread Beam with Right-Hand Bracket
• (1) FLEX ERA 1 Light in Spread Beam with Left-Hand Bracket
• (2) Flood Beam Lenses
• (2) Spot Beam Lenses
• (2) Lens Replacement O-Rings
• (2) KC Black Covers for FLEX ERA 1 Lights
• Complete Plug-N-Play Wiring Harness with LED Switch

• 2 x KC FLEX ERA 1 LED Lights with Spread Lens
• Wiring harness with Weatherproof Connectors
• 3-position switch
• 2 x Mounting Bracket
• 2 x Clear Spot Lens
• 2 x Clear Flood Lens
• 2 x KC Covers
• Mounting hardware

• 2-Light, 3-Pole, 40A Relay (160W) Wire Harness
• 2-Light, 3-Pole, 40A Relay (160W) Wire Harness
